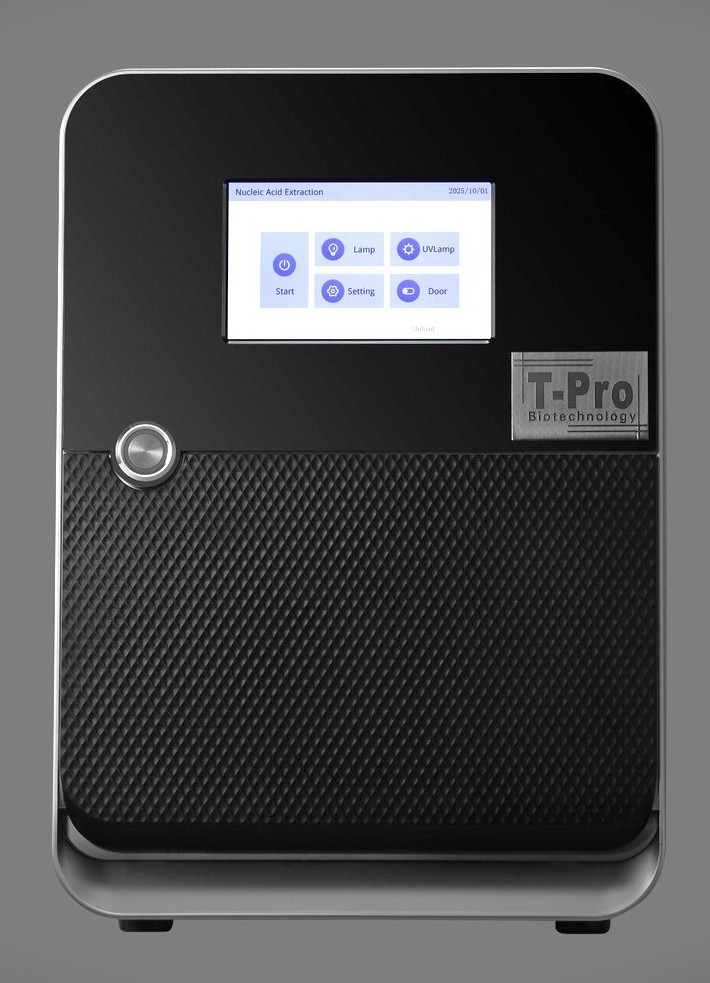

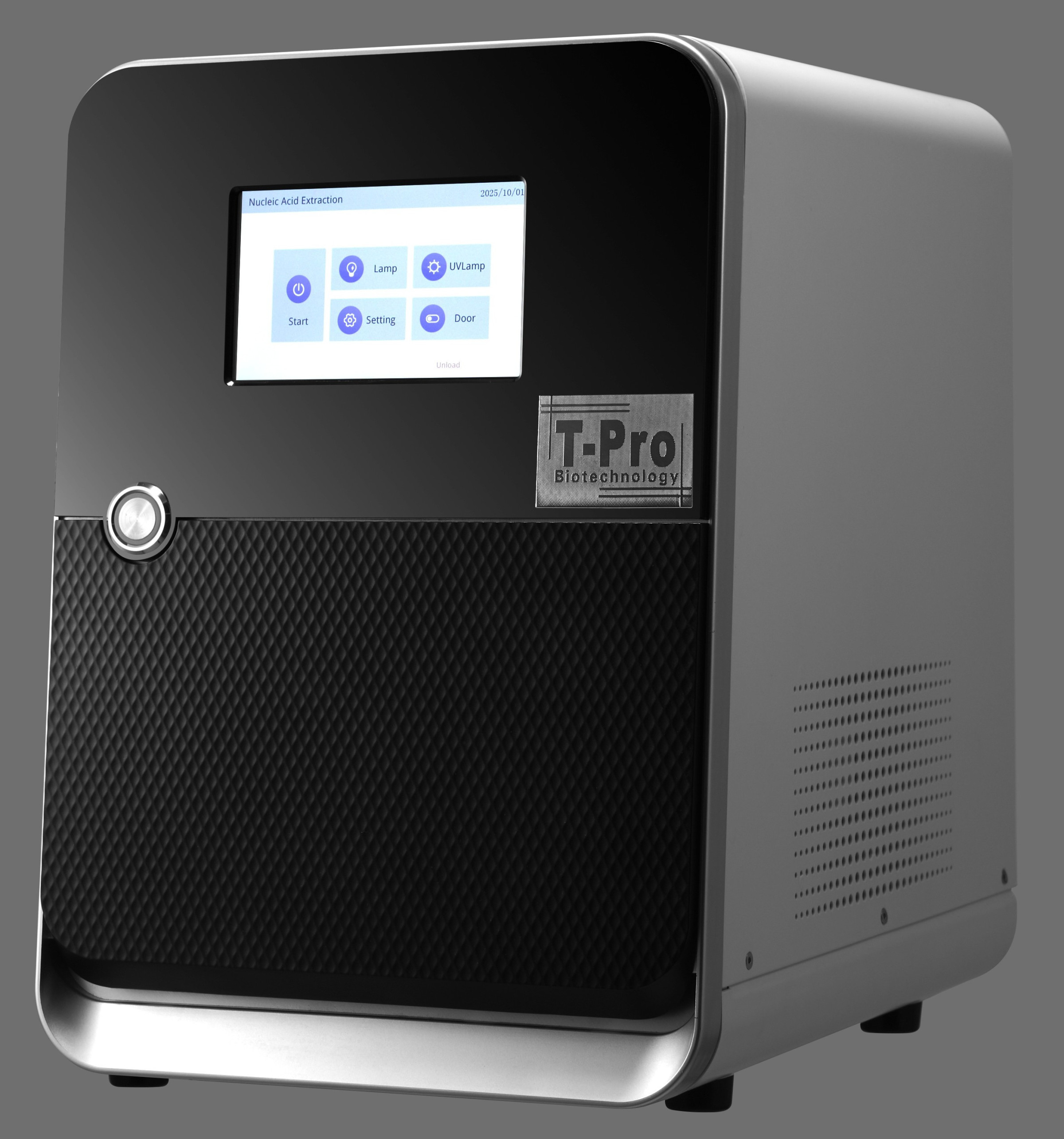

The T-Pro Auto 8t mini-system is a compact bench-top extractor for automated nucleic acid purification. It offers a flexibility to process 1-8 samples per run in parallel, which can meet your lab requirements from small to middle sample throughputs.
• Easy To Use
• Cost Effective
• Compact, Walk-away Automation
• Consistent And Reproducible Purified Results
• Advanced Magnetic Beads Extraction Technology
Compact
No separated PC is required. The T-Pro Auto 8t mini-system has a small footprint to save the limited lab space.
Smart Operation Navigation
The T-Pro Auto 8t mini-system provides smart operation navigation. Scientists can easily setup and start the nucleic acid extraction by following the guiding info shown on built-in LCD screen step by step without needs for advanced training or previous experience with robotic workstation.
UV Decontamination
UV lamp is equipped with the T-Pro Auto 8t mini-system which can decontaminate the inner surface of the workstation before or after operation.
Cost Effective
No more worry on the higher material costs to have an automated robot to nucleic acid purification system. The T-Pro Auto 8t mini-system not only commits good purification quality but also takes care of material costs whether in instrumentation or reagent kits. Please contact your regional distributor for further information.
System Specifications
Extraction Method :
Magnetic Bead Extraction Technology
Extraction Steps :

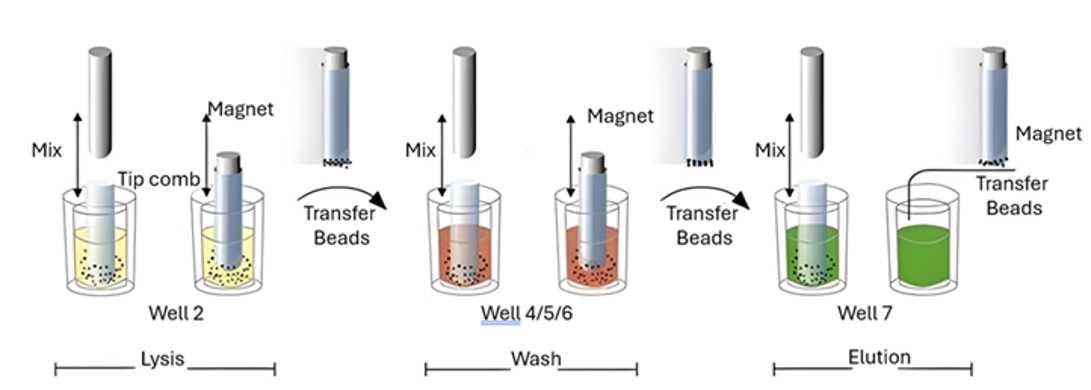

Sample binding, washing and elution
Throughput :
1 to 8 samples per run
Display : LCD
Dimensions :
(25cm W x 34cm D x 36cm H )
Weight : 33 lb ( 15 kg )
Operating Temperature : 15-45°C
Operating Relative Humidity :
30-80% (non-condensing)
Electrical Requirements :
110-240V 50/60Hz
Ready-to-use Reagent Kits
The T-Pro Auto 8t mini-system uses proven T-Pro FastEZ Purix kits for purification of DNA and nucleic acids from a wide range of starting materials. The T-Pro FastEZ Purix reagent kits contain everything you need for purification including prefilled reagent cartridges and disposal plastics that enable the optimal ease of use. All kits are specifically designed and tested by T-Pro Biotechnology’s experts for optimal extraction results. All cartridges are foil-sealed and remains sealed until the system runs, to minimize the risk of contamination and pollution.
45-60 minutes of extraction time
The purification process requires 45-60 minutes depending upon application and sample types.
Application
Nucleic acids purified using the T-Pro FastEZ Purix kits are suitable for use in a wide range of downstream applications, including genetic identity testing, genotyping, infectious disease researches, microarray assays, oncology, forensics, and many others.
Service and Application Support
Our team of service and application support is pleased to work with you to ensure the best performance from your system. We’re providing consultation, application development to system upgrading if required. The success of your application is guaranteed.
